GMS Sierra: Instrument Panel Fuse Block. The instrument panel fuse block access door is located on the driver side edge of the instrument panel.

The instrument panel fuse block access door is located on the driver side edge of the instrument panel.

Pull off the cover to access the fuse block.

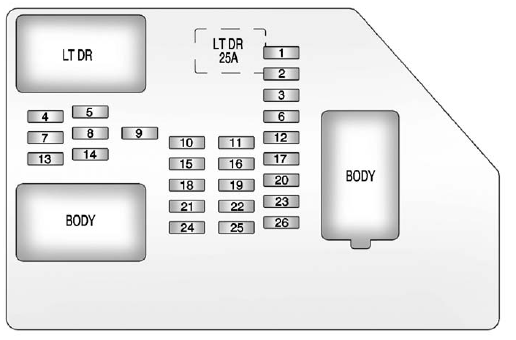

GMS Sierra: Instrument Panel Fuse Block. The vehicle may not be equipped with all of the fuses, relays, and features shown.

The vehicle may not be equipped with all of the fuses, relays, and features shown.

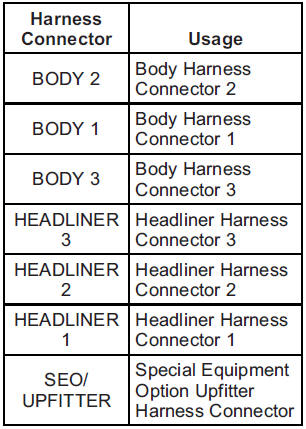

GMS Sierra: Instrument Panel Fuse Block.

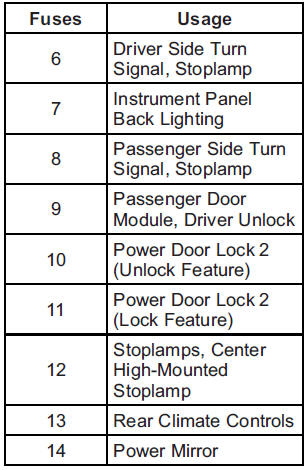

GMS Sierra: Instrument Panel Fuse Block.

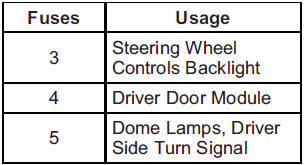

GMS Sierra: Instrument Panel Fuse Block.

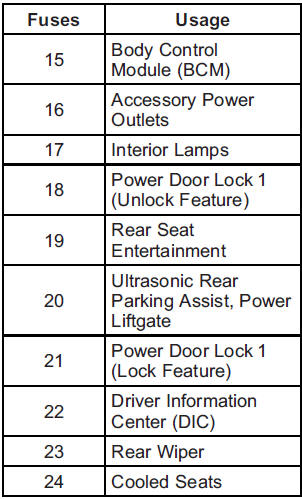

GMS Sierra: Instrument Panel Fuse Block.

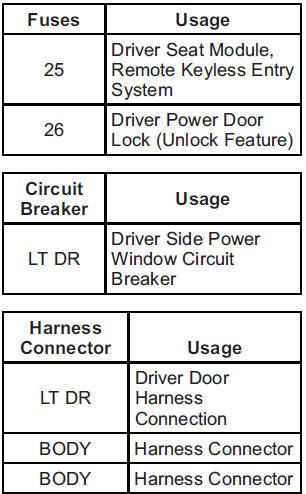

GMS Sierra: Instrument Panel Fuse Block. Center Instrument Panel Fuse Block

Center Instrument Panel Fuse Block

The center instrument panel fuse block is located underneath the instrument panel, to the left of the steering column.

Top View

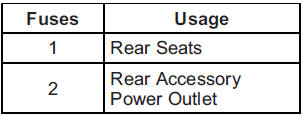

GMS Sierra: Instrument Panel Fuse Block.

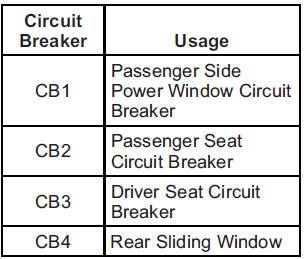

GMS Sierra: Instrument Panel Fuse Block.
